Flat Plate Thermosiphon Solar Water Heater

  • Apricus Wombat

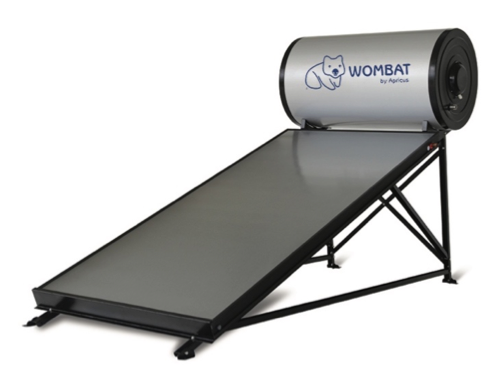

Flat Plate Thermosiphon Solar Water Heater


Flat Plate Thermosiphon Solar Water Heater - 1

    Flat Plate Thermosiphon Solar Water Heater - 2

888


Features

  • High efficiency heat pipe type flat plate collector

  • Anti-freeze design

  • Well insulated solar storage tank

  • Thermosiphon solar storage tank


Materials of Construction

Flat Plate Collector

Absorber: 0.3mm BlueTec Solar AL
Absorber Emittance: 5%±2%
Absorber Absorption: 95%±2%
Header: ¢22 x 0.8mm
Heat Pipes: 14(head) x 6(thickness) x 1700(length)mm
Heat Pipe Spacing: 110mm (total of 8 heat pipes)
Glass: 3.2mm 92% Transmittance
Collector Body: Anodized AL (black)
Insulation:

20mm rock wool bottom

20mm PF Resin sides

Back Sheet: 0.4mm Galvanized steel sheet



Storage Tank

Inner Tank: Food grade SUS304(SUS316 optional)
Outer Tank: PVDF coated
Insulation: High density polyurethane 50mm
Mounting Frame: Galvanized steel 1.5mm, SUS304 Fasteners
Max. Pressure: 6 bar


Optional Accessories

Electric heating element, PTRV, Mg anode.

Apricus branded WOMBAT thermosiphon systems are the low cost type solar water heaters which supply solar hot water for domestic hot water applications. Apricus provides two choices based on your daily hot water demand, with available capacity of 150L, 300L.

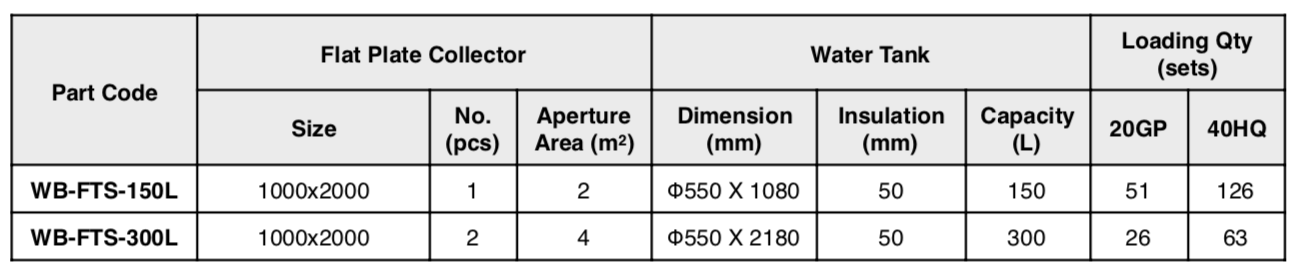

Table - Flat Plate Thermosiphon Solar Water Heater

Please download WOMBAT FTS Pressurized Tech Sheet PVDF tank 2.pdf
