BASIC SPECIFICATIONS
Dimensions (LxWxH)* | 2444 x 1223 x 75 mm |
Peak Output** | 2098 W |
Aperature Area | 2.8 m2 |
Gross Area | 2.98 m2 |
Gross Dry Weight | 46 kg |
Fluid Capacity | 1.8 L |
Flow Rate | 2 L/min (max 15L/min) |
Max Operating Pressure | 800 kPa / 8 bar |

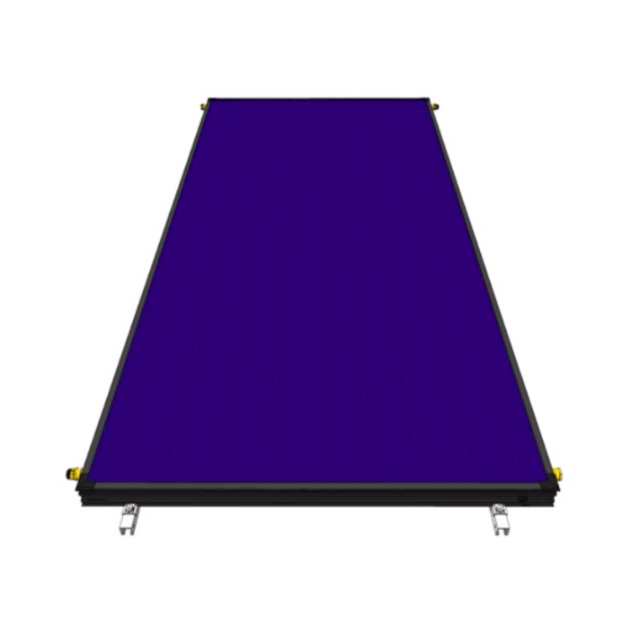

The Apricus FPC-A32 flat plate collector is suitable for residential or commercial domestic hot water projects. A key feature is the light weight and low profile due to use of ultra-light melamine foam insulation. For a basic overview of the Apricus FPC flat plate solar collector design and key features, click here.
Please download the FPC-A32 flat plate collector tech sheet(Apricus_FPC-A32_Tech_Info.pdf).
A single FPC-A32 flat plate collector is ideal for residential households of 5-6 people, able to provide 60-80% of domestic hot water demand (depending on location).
For commercial projects that demand a lot more hot water such as such as hotels, dormitories and car washes, multiple FPC-A32 collectors can be connected to form a larger solar thermal array.
