FPC-E20 Flat Plate Collector

Availability:
  • FPC-E20

  • Apricus

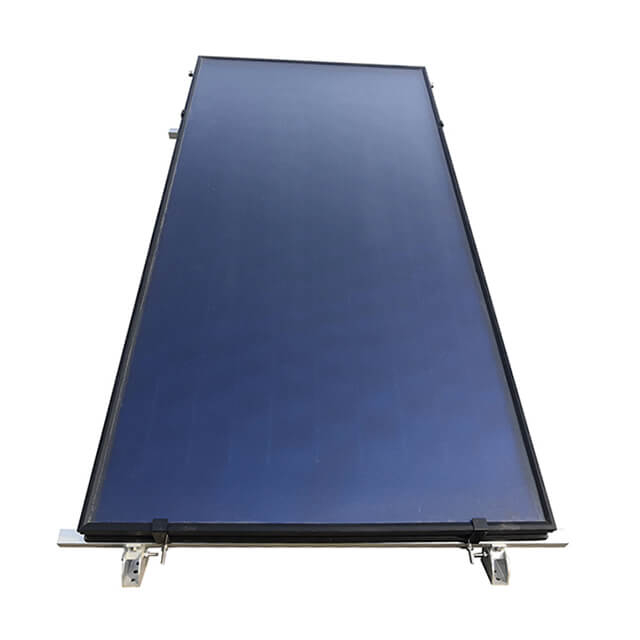

FPC-E20 Solar Collector

FPC-E20 Solar Collector


BASIC SPECIFICATIONS




Dimensions (LxWxH)* 2000 x 1000 x 70 mm
Peak Output** 1170 W
Aperature Area 1.824 m2
Gross Area 2.0 m2
Gross Dry Weight 30 kg
Fluid Capacity
1.5 L
Flow Rate 2 L/min (max 15L/min)
Max Operating Pressure 900 kPa / 9 bar



The Apricus FPC-E20 flat plate collector is suitable for residential or commercial domestic hot water projects. A key feature is the light weight and low profile due to use of ultra-light melamine foam insulation. For a basic overview of the Apricus FPC flat plate solar collector design and key features, click here.

Please download the FPC-E20 flat plate collector tech sheet(Apricus_FPC-E20_Collector_Tech_Info.pdf).

A single FPC-E20 flat plate collector is ideal for residential households of 3-4 people, able to provide 60-80% of domestic hot water demand (depending on location).

For commercial projects that demand a lot more hot water such as such as hotels, dormitories and car washes, multiple FPC-E20 collectors can be connected to form a larger solar thermal array.
