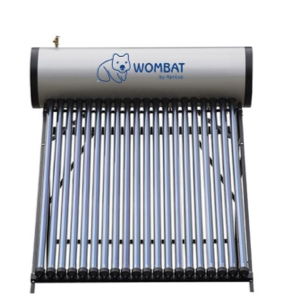

Pressurized ET Thermosiphon Solar Water Heater

  • Apricus Wombat

Pressurized ET Thermosiphon Solar Water Heater

Pressurized ET Thermosiphon Solar Water Heater


Features

  • Twin glass evacuated tubes (passive solar tracking)

  • Freeze resistant heat pipes

  • Well insulated solar storage tank

  • Easy plug-in dry connect installation of heat pipes

  • 3 year limited warranty on compact system

  • 10 year limited warranty on evacuated tubes

  • Efficient performance at high differential temperatures


Materials of Construction

Evacuated Tubes: Borosilicate 3.3 Glass
Absorber: Cu-SS-AL/N
Heat Pipes: High purity copper
Heat Transfer Fins: Aluminum
Inner Tank: Food grade 1.2mm SUS304
Outer Tank: PVDF coating tank
Insulation: High density polyurethane 50mm
Mounting Frame: Galvanized steel 1.5mm, 304 SS Fasteners
Max. Pressure: 6 bar


Optional Accessories

Electric heating element, PTRV, Mg anode & Check valve.

Apricus branded WOMBAT thermosiphon systems are the low cost type solar water heaters which supply solar hot water for domestic hot water applications. Apricus provides two choices based on your daily hot water demand, with available capacity of 150L, 200L, 240L 300L.

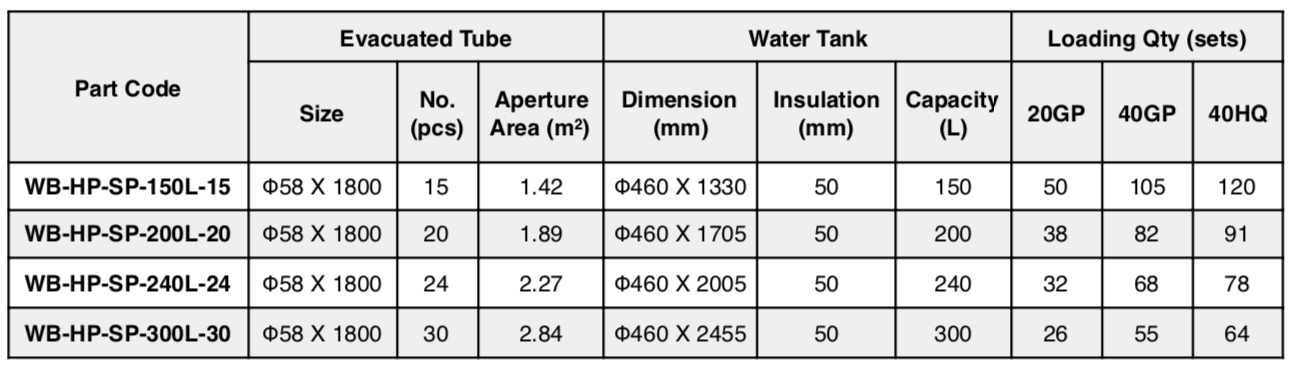

Table - Pressurized ET Thermosiphon Solar Water Heater

Please download WOMBAT ET-HP Pressurized Tech Sheet PVDF tank V3.pdf
