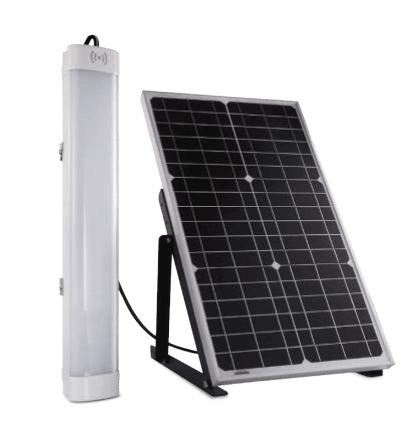

Solar LED Batten Light
WOMBAT solar batten light is adapted from our most successful all in two Led street light built on the same platform, It is good answer to a vast solar lighting applications in urban and rural living. Llithium battery and high charging efficiency solar controller are built inside of light. Ultra high brightness led are used, it reaches high lumens output up to 130lm/Watt. IP67 weather proof lighting fixture with the PC fixture, it can be perfectly used for outdoor lighting, as garage , warehouse, caravan, carport, refugee tents, camping tent, caves, mines etc.
The easy MC4 plug in set up makes the light extremely easy for installation and portability. Distance from solar panel to light is up to 30 meters, it makes installation very flexiable. Built with high quality components, WOMBAT solar batten light ( You can also call it as solar carport light or solar tri proof light ) can meet project requirements as well in any challenging environments. WOMBAT batten light is able from 12 watts to 36 watts.
Key Advantages
1. Efficient Control System
MPPT controller is adopted to all of WOMBAT solar led batten light, Charging faster by 30% than PWM controller. It ensures battery full charged each day and every night without black even if sunshine intensity is not stable all the year round.
2. Big Battery Capacity Backup
Compact solar light system with lithium batery inside. More than 4 days autonomy in energy saving mode or 12 hrs working in constant lighting with 100% power. Never worry about out of power any more.
3. Ultra Brightness Output
This light is designed for commercial project use. It reaches to 150lm per watt pratically. 12W is good enough for a 20 sqm room or area. it uses ultra high brightness led chip SMD2835, it creat a smooth lighting performance and uniform distribution.
Specification Sheet
Item Number | 1500X | 2200X | 3000X |
LED Rated Power | 12W | 18W | 24W |
Luminous Flux(lm) | >1,500lm | >2,200lm | >3,000lm |
Color Temperature | 3000K ~ 6000K | 3000K ~ 6000K | 3000K ~ 6000K |
Dimensions | 92*84*600mm | 92*84*600mm | 92*84*900mm |
Solar Panel | 30W 18V | 60W 18V | 80W 18V |
Lithium Battery | 12V 144Wh | 12V 216Wh | 12V 288Wh |
Charging Time | 6 hours | ||
Discharging Time | >20 hours | ||
Working Temp. | -15℃ ~ 70℃ | ||
Sensor Type | Microwave Sensor | ||
IP & IK Rate | IP67 IK10 | ||
Housing Material | Aluminium + PC | ||
Connection Cable | 3 ~ 5 Meters | ||
Warranty | 3 Years |

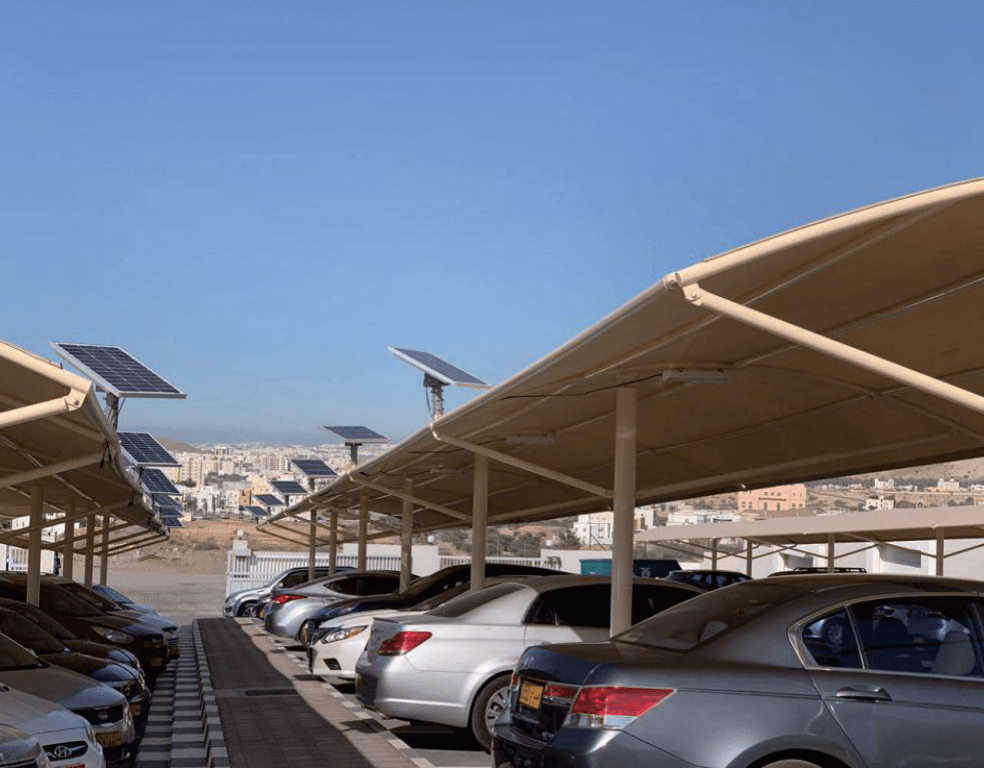

Applications
WOMBAT Solar batten lights are capable of meeting many applications and challenging solar lighting requirements with extremely simple and easy installation capability. It is a perfect solution for many outdoor applications such as carports, bus shelters, warehouses, temporary shelters, outdoor kiosks, street kiosks, camping tents, boats or any remote locations where grid is a challenge. Power and length of the lights can be customized to meet different project requirements as well.
Solar LED Batten Light
WOMBAT solar batten light is adapted from our most successful all in two Led street light built on the same platform, It is good answer to a vast solar lighting applications in urban and rural living. Llithium battery and high charging efficiency solar controller are built inside of light. Ultra high brightness led are used, it reaches high lumens output up to 130lm/Watt. IP67 weather proof lighting fixture with the PC fixture, it can be perfectly used for outdoor lighting, as garage , warehouse, caravan, carport, refugee tents, camping tent, caves, mines etc.
The easy MC4 plug in set up makes the light extremely easy for installation and portability. Distance from solar panel to light is up to 30 meters, it makes installation very flexiable. Built with high quality components, WOMBAT solar batten light ( You can also call it as solar carport light or solar tri proof light ) can meet project requirements as well in any challenging environments. WOMBAT batten light is able from 12 watts to 36 watts.
Key Advantages
1. Efficient Control System
MPPT controller is adopted to all of WOMBAT solar led batten light, Charging faster by 30% than PWM controller. It ensures battery full charged each day and every night without black even if sunshine intensity is not stable all the year round.
2. Big Battery Capacity Backup
Compact solar light system with lithium batery inside. More than 4 days autonomy in energy saving mode or 12 hrs working in constant lighting with 100% power. Never worry about out of power any more.
3. Ultra Brightness Output
This light is designed for commercial project use. It reaches to 150lm per watt pratically. 12W is good enough for a 20 sqm room or area. it uses ultra high brightness led chip SMD2835, it creat a smooth lighting performance and uniform distribution.
Specification Sheet
Item Number | 1500X | 2200X | 3000X |
LED Rated Power | 12W | 18W | 24W |
Luminous Flux(lm) | >1,500lm | >2,200lm | >3,000lm |
Color Temperature | 3000K ~ 6000K | 3000K ~ 6000K | 3000K ~ 6000K |
Dimensions | 92*84*600mm | 92*84*600mm | 92*84*900mm |
Solar Panel | 30W 18V | 60W 18V | 80W 18V |
Lithium Battery | 12V 144Wh | 12V 216Wh | 12V 288Wh |
Charging Time | 6 hours | ||
Discharging Time | >20 hours | ||
Working Temp. | -15℃ ~ 70℃ | ||
Sensor Type | Microwave Sensor | ||
IP & IK Rate | IP67 IK10 | ||
Housing Material | Aluminium + PC | ||
Connection Cable | 3 ~ 5 Meters | ||
Warranty | 3 Years |
Applications
WOMBAT Solar batten lights are capable of meeting many applications and challenging solar lighting requirements with extremely simple and easy installation capability. It is a perfect solution for many outdoor applications such as carports, bus shelters, warehouses, temporary shelters, outdoor kiosks, street kiosks, camping tents, boats or any remote locations where grid is a challenge. Power and length of the lights can be customized to meet different project requirements as well.
