Solar LED Batten Light Kit
What is solar batten light?
WOMBAT Solar LED batten light is specially designed for retail & distribution market. Can be widely used in many applications, such as office, home, garage, caravan, carports, bus stations, warehouses, camping tents, farm tents, sidewalks & alleyways, emergency camps, aid tents, caves, or many kinds of temporary or permanent accommodation structures, etc. Solar LED batten light is a kit that contains everything - rechargeable lithium battery, solar controller, and solar panel. Easy installation in less than 5 minutes; It provides a high brightness level over a long period of time, continuous lighting output, and built-in PIR sensor to save power if sunshine is not strong enough.
This solar LED batten light also supports working during day time while being charged- under manual operation. By programming the remote control, you can increase or decrease the brightness as you wish; there are 2, 4 and 6 hour settings available. One 5V USB output is included to charge a mobile phone.
It is a perfect lighting solution for remote areas, that lack either power or fixed lighting.
Specification Sheet
| Item Number | 36E | 60E |
LED Peak Power | 12W | 24W |
| Luminous Flux(lm) | >1,500lm | >2,400lm |
| Color Temperature | 6000K | 6000K |
| Light Dimensions | 360*65*80mm | 600*65*80mm |
| Solar Panel | 10W 6V MONO | 18W 6V MONO |
| Battery | 3.7V 8000mAh | 3.7V 14000mAh |
| Housing Material | Polycarbonate + Aluminium |
| USB Output | 5V 0.5A |
| Remote Control | Yes |
| Charging Time | 6 Hours |
| Discharging Time | >20 Hours |
| Working Temp. | -15℃ ~ 70℃ |
| Connect Cable | 5 Meters |
| IP Rate | IP65 |
Remote Control

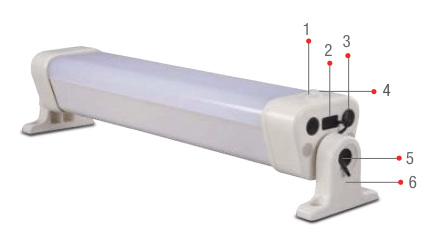

Function & Buttons
1 : Push Switch
2 : USB Ouput
3 : Conector to external switch
4 : Motion (PIR) Sensor
5 : Solar Panel Input
6 : Adjustable Light Brackets

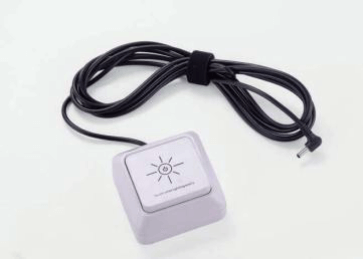

Wall Switch
Extension to Wall Switch
With this extnesion, the light can be ON/OFF anytime as you need, no matter it is day time or night, the light can work as a normal light, Very suitable for the places where never get sunshine like Basement, wine cellar etc.

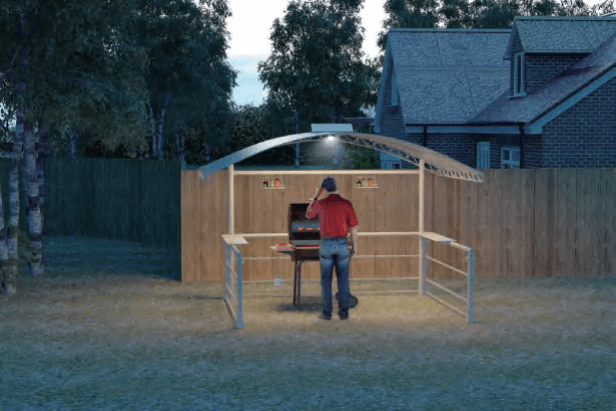

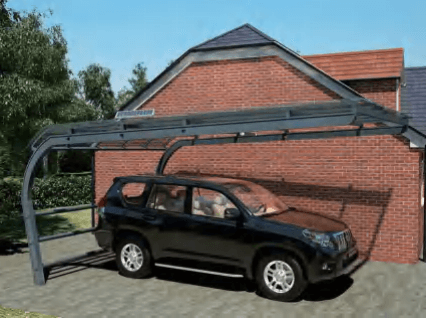

Application
