MFC-2 Solar Controller

  • MFC-2
  • Apricus

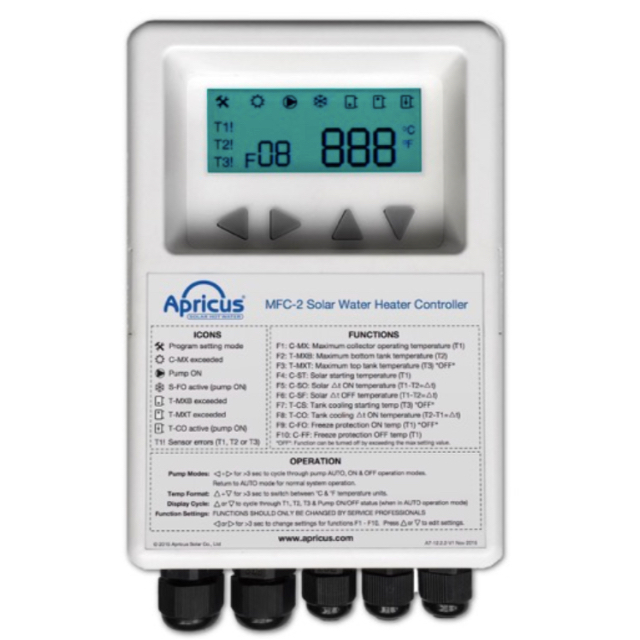

MFC-2 Controller

MFC-2 Controller 1

The Apricus MFC-2 multi-function controller can manage a wide range of solar thermal and HVAC systems for both domestic and commercial applications.  A variety of software packs allow the controller to be programmed to meet a wide range of applications. The Apricus MFC-2 solar controller is design for simple solar hot water systems that only required the management of a single circulation pump.  System management is achieved through measurement of 1 collector and 2 tank temperature sensors.


Key Features

  • Clear backlit LCD display

  • Display of system temperatures and operating status

  • Adjustable functions settings

  • Manual/Off/Auto pump modes

  • Power surge protection

  • Temperature sensor malfunction warning

  • Operating instructions and function summary on front panel

  • Comprehensive set of operating functions:

    • Collector maximum temperature

    • Tank maximum bottom/top temperatures

    • Collector minimum start-up temperature

    • Collector on/off delta-t temperatures

    • Tank cooling start and on/off delta-t temperatures

    • Free protection on/off temperatures

  • Custom functions can be developed for volume orders


Technical Specifications

Housing: ABS plastic
Cable Glands: Nylon PA66
Casing Dimensions:

160 x 110 x 82mm

6.3 x 4.3 x 3.2”

Net Weight (with sensors): 1.24kg / 2.73lbs
Ambient Temperature: 0oC~40oC / 32oF~104oF
Power Supply: AC 110-240V 50/60Hz
Fuse:

5x20mm, 250V 3A

(user replaceable)

Standby Power Consumption: <1W
Temperature Sensors:

1 x 15m/49’ NTC collector sensor

(-40oC~220oC / -40oF~428oF)

2 x 2m/6.5’ NTC tank sensors

(-20oC~105oC / -4oF~221oF)

Outputs: 1 x 1Amp AC relay
Protection Type: IP 20
Protection Class: I


File Downloads: MFC-2_Technical_Sheet
