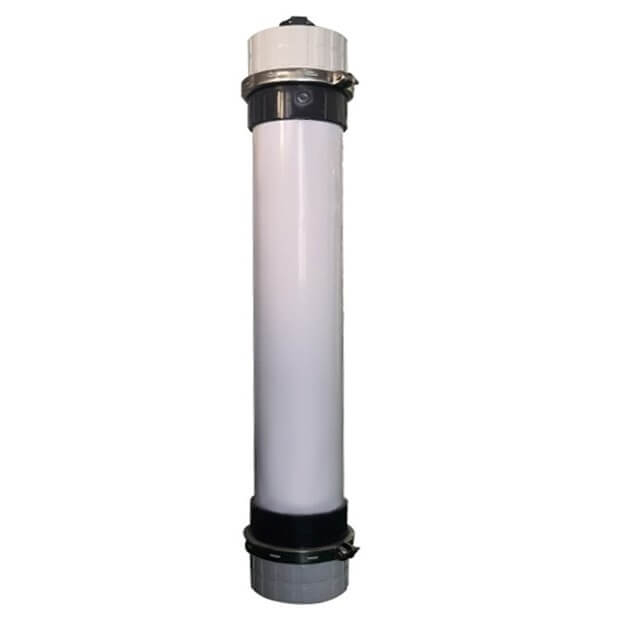

External Pressure PVDF Hollow Fiber Membrane Modules

Highly-antifouling PVDF hollow fiber ultrafiltration membrane

External pressure PVDF hollow fiber membrane modules

Characteristic

1)      In membrane modules, the membrane fibers are evenly distributed in six equally sector areas leading to high packing density and high sewage treatment efficiency.

2)      The feed water inlet is set with diversion holes to guide water into filtration system evenly which could reduce pollution.

3)      The unique packaging process could reduce the membrane fracture and prolong service life.

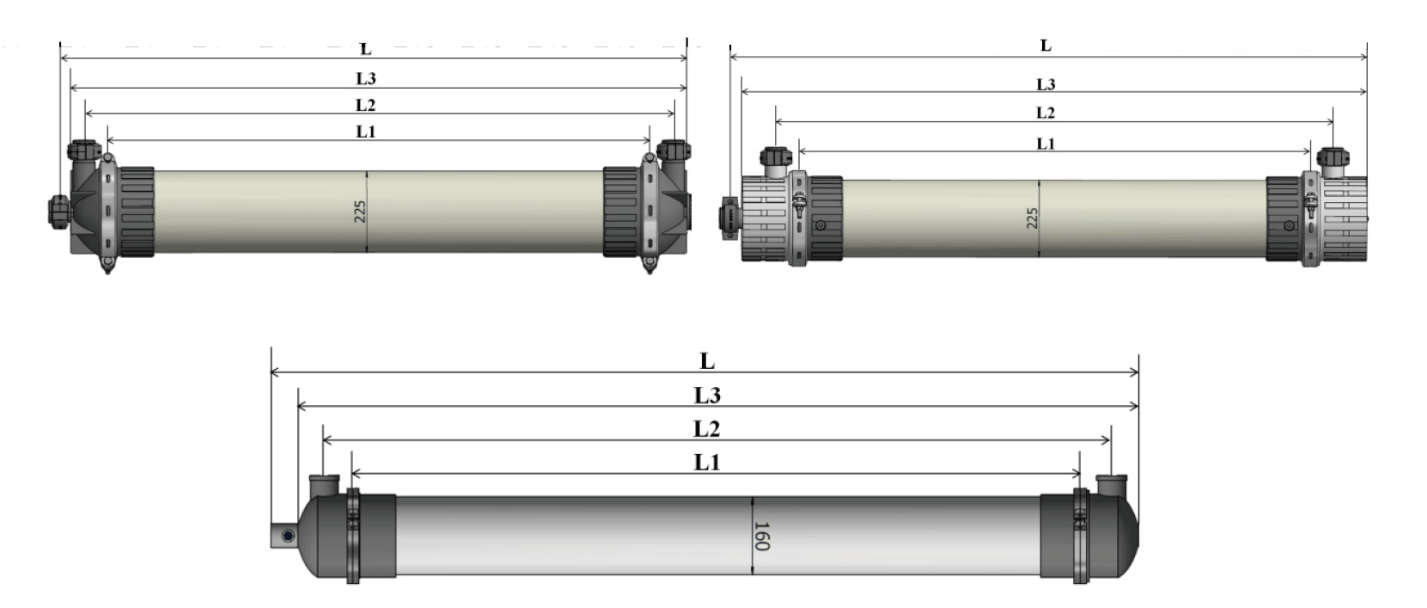

Membrane Module Type

External pressure PVDF hollow fiber membrane modules




F25 Series

Type

L1

L2

L3

L

F25-0860-A

1500

1630

1700

1730

F25-0860-B

1500

1630

1820

1860

F25-0880-A

2000

2130

2200

2230

F25-0880-B

2000

2130

2320

2360

F25-0660

1500

1610

1720

1775

(Company provides membrane modules customized services)




F20 Series

Type

L1

L2

L3

L

F20-0860-A

1500

1630

1710

1800

F20-0860-B

1500

1630

1820

1860

F20-0880-A

2000

2130

2200

2230

F20-0880-B

2000

2130

2320

2360

F20-0660

1500

1610

1720

1775

(Company provides membrane modules customized services)



Technical Parameters of Membrane Modules

Product Types

0880-A

0880-B

0860-A

0860-B

0660

Product Specification

Size / mm

Φ225×2230

Φ225×2360

Φ225×1730

Φ225×1860

Φ160×1775

Length / mm

2000

2000

1500

1500

1500

ID/OD /mm

F25 Series : 0.7/1.3    F20 Series : 0.67/1.25

Area / m2

75

75

50

50

33

Wet weight / kg

65

65

53

53

35

Water inlet

DN50

DN50

DN50

DN50

DN50

Produced water outlet

DN50

DN50

DN50

DN50

DN50

Concentrated water outlet

DN50

DN50

DN50

DN50

DN50

Product Description

Material

PVDF

Shell materials

UPVC

Seal adhesive material

Epoxy resin

Operation mode

External pressure

Preserved mode

Wet

Applicable Conditions

Water flux / LMH

40-120

Operation mode

Full flow filtration &   Cross-flow filtration

pH

2-11

Temperature /

5-40

Turbidity of inlet(max) /   NTU

300

Pressure of inlet(max) /   Mpa

0.60

Transmembrane pressure(max)   / Mpa

0.20

Backwash pressure(max) /   Mpa

0.25

Chlorine-tolerant property/   mg/L

5000

Performance


F25 series

F20 series

Expected effluent turbidity   / NTU

≤0.2

≤0.1

Suspended solids / mg/L

≤1

-

Expected effluent SDI

≤2.5

<2.0

Comment: The above parameters are reference values, and the operation control parameters of the membrane modules should be set according to the actual situation.



Application Area

External pressure PVDF hollow fiber membrane modules
