Hollow Fiber Flat-plate Membrane Module For MBR

Highly-antifouling PVDF Hollow Fiber Ultrafiltration Membrane

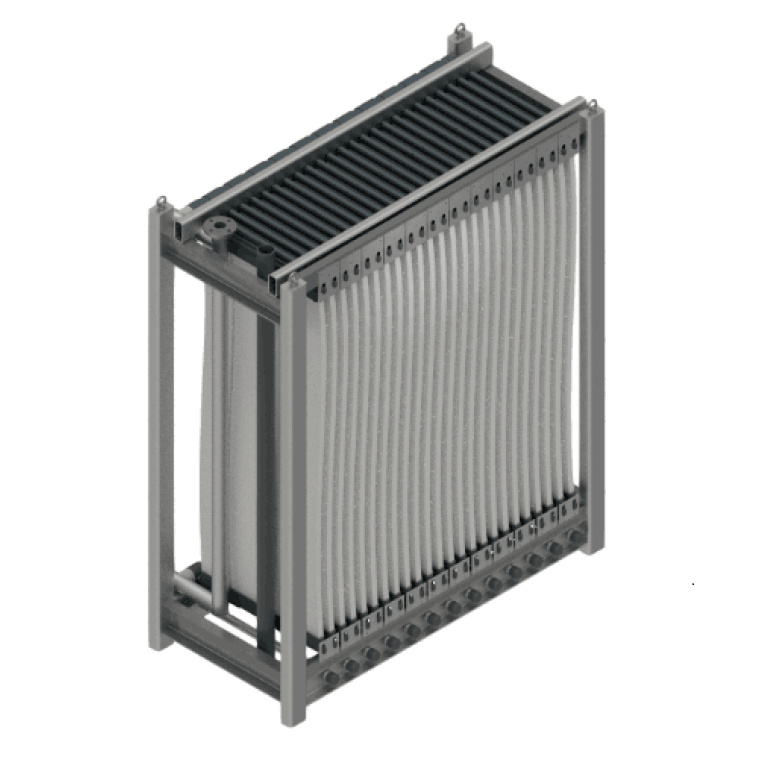

Hollow fiber flat-plat membrane module for MBR

Characteristic

§  Simply system and high flux recovery

§  Effectively remove suspended solids and colloid from water and inhibit membrane pollution

§  Lower sludge production, reducing the cost of sludge disposal

§  Compact structure saves investment

§  Reducing 50% footprint compared with traditional wastewater treatment plant

§  Simple maintenance, low-cost operation

§  Automatical backwashing and chemical cleaning online

Standard Element Specification

Product Types

25-J21

25-J32

25-M10

Product Specification

Effective membrane area /m2

21

32

10

Pore size /nm

25

ID/OD /mm

0.8/2.1

Wet weight of membrane element /kg

20

30

10

Element dimensions /mm(A*B*C)

875*1514*58

875*2214*58

660*1500*40

Product Description

Membrane material

PVDF

Seal adhesive material

PU

Operation mode

External Pressure

Applicable Conditions

Water flux /LMH

10-30

pH

5-9.5

Transmembrane pressure /KPa

-55~55

Chlorine-tolerant property /ppm

5000

Notes: Company provides membrane elements customized services

Hollow fiber flat-plat membrane module for MBR

Membrane Module Type

Module No.

Element No.

Element number

Effective membrane area/m2

Module dimension

mm

Permeate nozzle

Aeration nozzle

Length /A

Width /B

Height /C

25-J21-48-1008

25-J21

48

1008

1860

2020

1500

80

65

25-J32-48-1536

25-J32

48

1536

1860

2020

2500

100

80

25-M10-48-0480

25-M10

48

480

1860

2020

2500

100

80

25-J32-36-1152

25-J32

36

1152

1860

2020

2500

100

80

25-J32-24-0768

25-J32

24

768

1100

2020

2500

80

65



Application Area

Hollow fiber flat-plat membrane module for MBR
