Solar Hot Water Working Station

Solar Hot Water Working Station WSII, WSI

(Self Filling Pump)

Apricus supplies high quality compact solar hot water working station for your home and commercial solar hot water systems.


                       Untitled 2Untitled

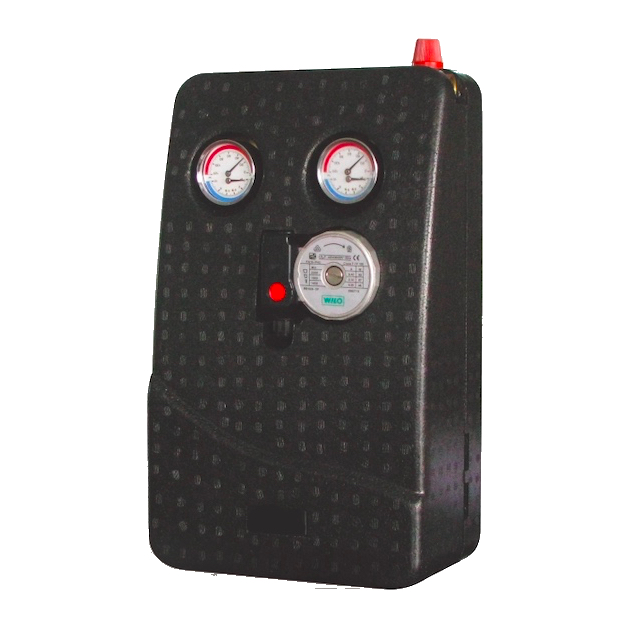

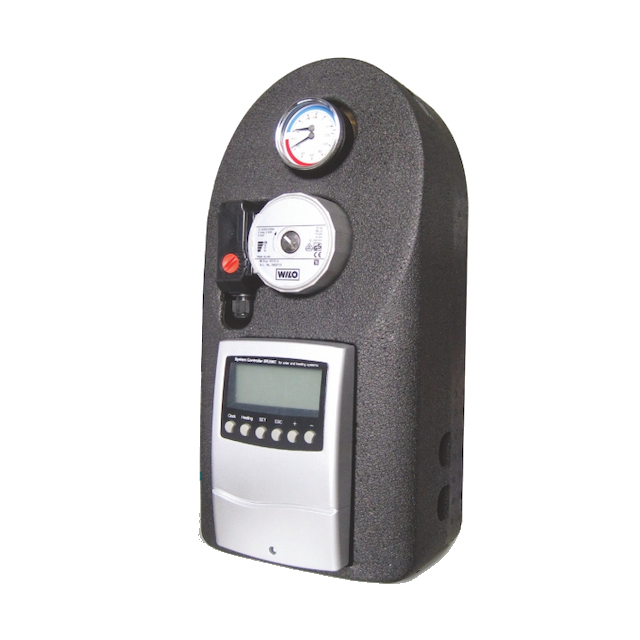

                                                        WS-I                                                                    WS-II



Key Features

WS-II is a combined circulation unit for solar application. On the right hand side, the pump will supply from the storage tank to the solar collector, and the left hand pipe is the return from the collector to the tank coil.No filling pump needed, using the working station with the container supplied could simplify the installation on filling medium liquid. The circulation pump will allow one man to fill the system.

  • Multifunctional ball valve to simplify the system filling

  • Install the collector and the cylinder separately

  • Preset the flow rate

  • Air stop device, manual integrated vent

  • Can work conjunction with any controller

  • Safety operation, excellent performance, maintenance free


Technical Parameters

Application range: Combined self-fill circulation unit for solar thermal applications

Max pressure: 10 Bar

Max working temperature: 100oC

Max surrounding temperature: 45oC

Connection size: G3/4" female


Safety Device

Application range: Combined self-fill circulation unit for solar thermal applications

Max pressure: 10 Bar

Max working temperature: 100oC

Max surrounding temperature: 45oC

Connection size: G3/4" female


Circulation Pump

Mode: Wilo RS-15/6 RS-25/6

Maximal flow rate: 2.5T/h

Max lift: 6M

Max working pressure: 10 Bar

Working temperature: -25oC + 110oC

Power supply: 220V/60Hz or 110V/50Hz


Balance Valve

Flow rate control range: 4-16/min

Applicability: Flow meter is control the flow rate from the rang 4-16L/min. The flow meter can display exactly flow rate. Anti-blast glass and brass cover vertical installation is obligatory.

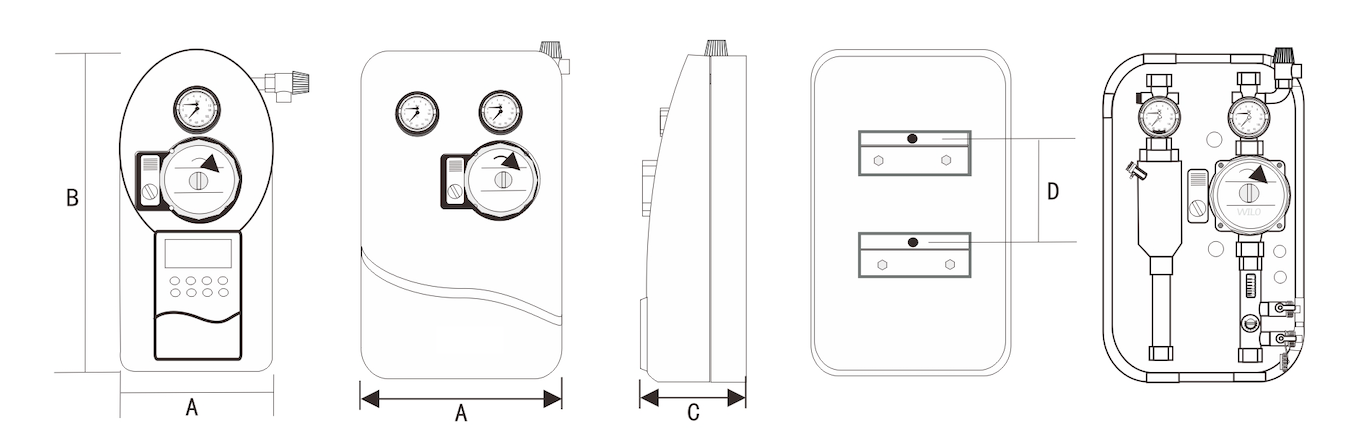

Screen Shot 2019-08-16 at 2.26.59 PM
