PV Powered Split Pump Forced Solar Heating System

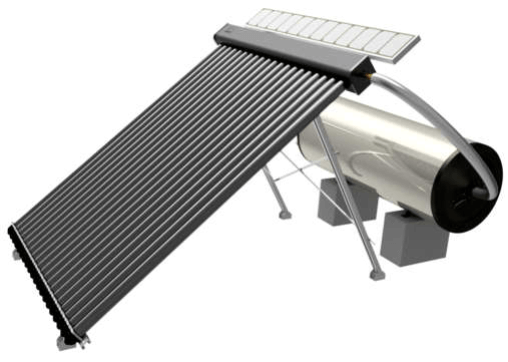

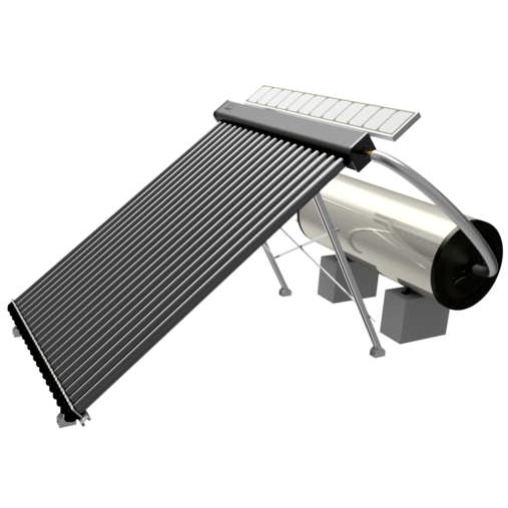

PV-ETC20-200 : PV powered split pump forced solar heating system.
Applications
The Apricus PV-ETC20-200 solar system is designed to use free solar energy only. It can be applied for a wide variety of solar thermal (heat) applications in almost any climate. This system provides a complete package of 200L solar hot water heating solution, which technology provides very efficient and reliable solar hot water in a simple installation design.
Features
• Solar energy only hot water heating system
• Enamel lined mains pressure storage tank with Mg Anode Freeze resistant heat pipes
• High efficiency evacuated tube & heat pipe solar collector
• 40W solar photovoltaic panel for electric supply
• Cyclone rated, corrosion resistant aluminium mounting frame
• Provided with circulation pump, temperature controller, all piping, fittings and safety valve
• 5 year limited warranty on storage tank
• 10-15 year limited warranty on parts
Technical Specification
Evacuated Tube Solar Collector
| Evacuated Tubes | Borosilicate 3.3 Glass |
| Absorber | Cu-SS-AL/N |
| Heat Pipes | High purity copper |
| Heat Transfer Fins | Aluminium |
| Rubber Components | HTV Silicone Rubber |
| Mounting Frame | 6005-T5 Anodized Aluminium |
| 316 SS Fasteners |
| Manifold Casing | 3003 AL, PVDF coating |
| Peak Power Output | 1342 W |
| Dimensions (LxWxH) | 1496 x 2005 x136 mm |
| Aperture Area | 1.89 m2 |
| Gross Area | 2.21m2 |
| Gross Dry Weight | 63.5 kg |
| Fluid Capacity | 550 ml |
| Max Operating Pressure | 800 kPa |
| Stagnation Temperature | 228oC |
| Certifications | Solarkeymark, AS/NZS 2712-2007, SRCC |
Storage Tank
| Tank | 2.2mm mild steel |
| Lining | Enamel |
| Casing | Powder Coated Zn Galv Steel |
| Insulation | 58mm high density PU foam |
| Anode | ∅18 x 1100mm Mg Anode |
| Electrical Rating | IPX4 |
| Safety Valve | 1MPa / 99oC PT valve |
| Certification | CE, Watermark |
Piping
| Pipe Material | 3/4” 304SS Flexible Pipe |
| Fittings | Brass |
| Insulation | 13mm thick Aeroflex EPDM |
| Insulation Cover | Reinforced AL Foam |
