All in One Solar LED Street Light

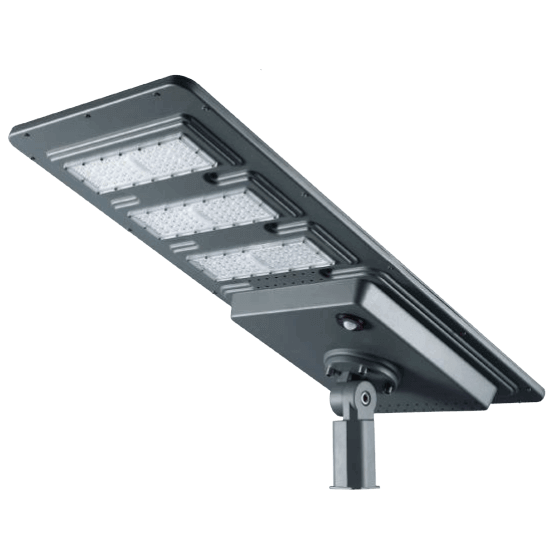

WOMBAT is a high power series all in one solar led street light, it becomes more and more popular because of its appearance. Rather than regular all in one solar led street light, WOMBAT adopts aluminium die casting fixture instead of aluminium alloy fixutre.

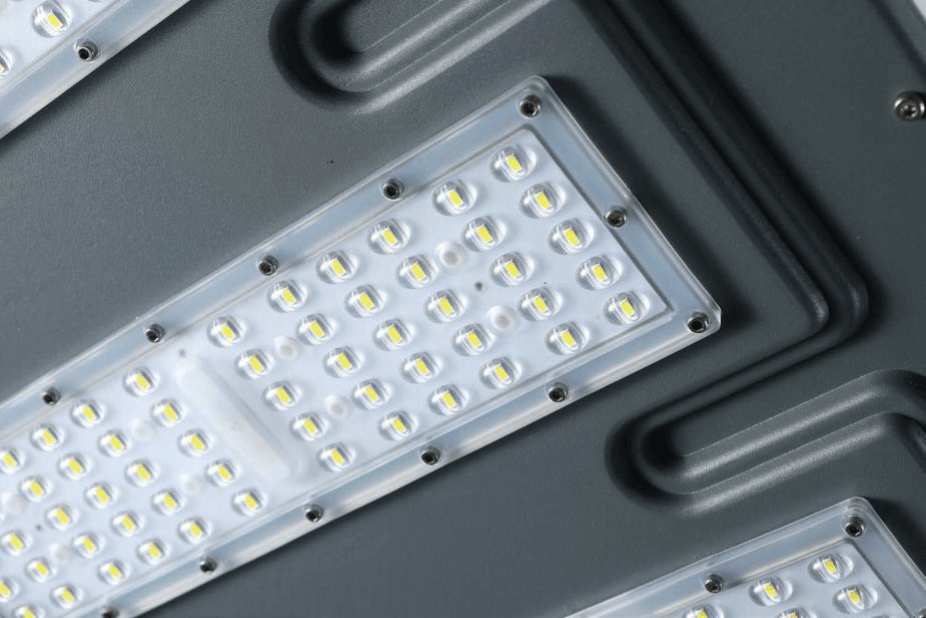

WOMBAT is also an intelligent by combining a programable MPPT controller, recyclable LifePO4 lithium battery system whose lifetime is more than 2000 cycles, asymmetric illumination LED source and sensitive 'Smart Eye' motion sensor, to realize efficient cost, easier maintenance, saving energy. And using 60pcs led on each module with practical lumens up to 160lm/W. With all components as a complete system, its installation is very easy, can be mounted to poles or walls. Very flexible and vast potential application.
Specification Sheet
| Item Number | 300T | 400T | 600T |
| Max Power of LED Chip | 40W 70Pcs LED | 60W 120Pcs LED | 80W 180Pcs LED |
| Max Luminous Flux(lm) | >3,600lm (6000k) | >4,500lm (6000k) | >6,000lm (6000k) |
| Color Rending Index | >79 | >79 | >79 |
| Dimensions | 660*368*145mm | 790*368*145mm | 1010*430*145mm |

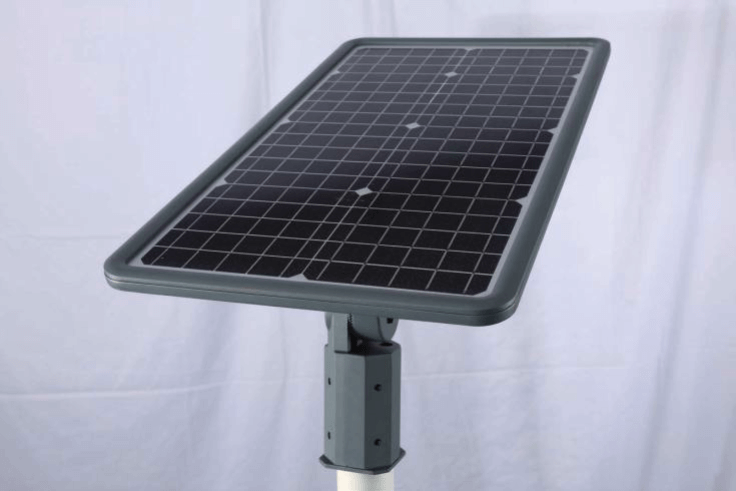

| Solar Panel | 42W MONO | 56W MONO | 80W MONO |
| Lithium Battery | 20Ah 12V | 30.8Ah 12V | 40Ah 12V |
| Installation Height | 4~6 meters | 6~8 meters | 8~12 meters |
| Charging Time | 6 hours |
| Discharging Time | >20 hours |
| Housing Material | Aluminium die casting |
| Working Temp. | -15℃ ~ 70℃ |
| IP Rate | IP65 |
| Working Mode | 30% when no sensor + 100% when sensor is triggered for 12 hours. All night operation. |
